Top Hinge Repair Kit for Volkswagon Transporter T5 / T6 Cup Holder 7H285860130T

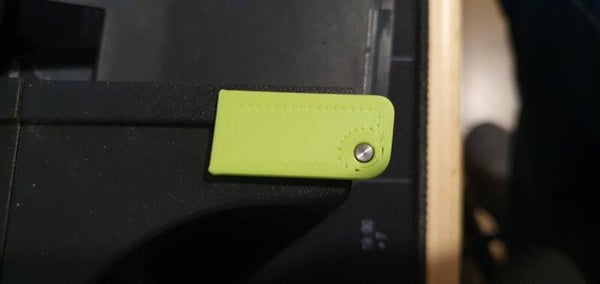

3d printed replacement top hinges for your transporter Cup Holder.

These are glued in place once the area has been suitably prepared.

Hopefully this short video will assist. (left click and drag the link - copy and paste into your browser)

https://youtu.be/yJCbUihfJb0?si=BI3OG35BCIpEhnyy

Saw down keeping the blade as close to the side as possible on both sides of the cup holder.

Then remove what is left around the shaft axis with a file as this is what the replacement will sit against.

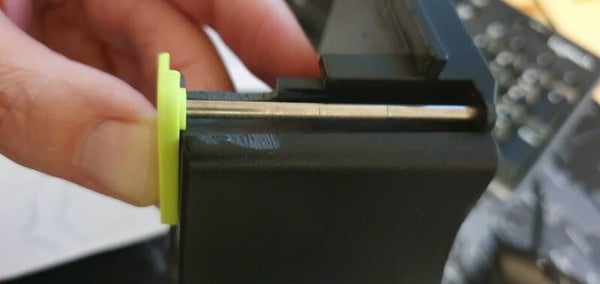

Check the fit of the replacements with just the hinge without the spring and if you feel any resistance, file a bit more from around the shaft axis. (it should be a smooth blend to the top)

Apply a very thin layer of epoxy adhesive (clean look) or superglue (messy look) and apply the new hinge mounts.

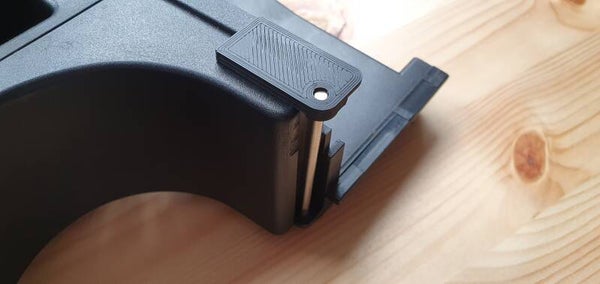

When cured, re-assemble your cup holders with springs and enjoy.

You will receive 1 set, left and right side.

My aim is for you to be 100% satisfied.

If you are not completely satisfied with your purchase please do not hesitate to contact me; I will do my very best to resolve any issues. If you're still not completely satisfied I offer a 7-day money-back guarantee.

If goods were sent out as ordered, you is responsible for any return postage, refunds will only be given upon receipt of returned goods.
